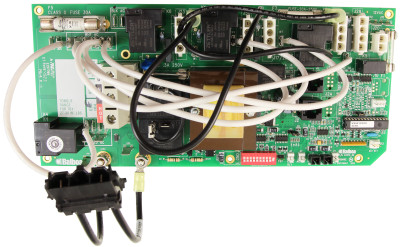

PCB Balboa Genuine VS501Z G1152

PCB Balboa Genuine VS501Z G1152 for hot tub repairs.

Setup for Balboa VS501Z to run as a VS500Z with any rectangular topside medium or large, VL600 3 or 4 button, VL260 3 or 4 Button

To run as 3 button topside Pump/Light/1 Temp Button

Dip Switch Settings

1    OFF
2    OFF
3    OFF
4    OFF
5    OFF
6    OFF
7    OFF
8    OFF
9    OFF
10    ON
To run as Rectangular topside 4 button Jet/Light/Temp Down/Temp Up

Dip Switch Settings

1    OFF
2    OFF
3    OFF
4    OFF
5    OFF
6    OFF
7    ON
8    OFF
9    OFF
10    ON
Mini Oval topside setups Eco 200

To run as Mini Oval topside 3 buttons on topside Pump/Light/Temp

Dip Switch Settings

1    OFF
2    OFF
3    ON
4    OFF
5    ON
6    OFF
7    OFF
8    OFF
9    OFF
10    ON
Mini Oval 4 buttons Jet/Light/Temp Down/Temp Up

Dip Switch Settings

1    OFF
2    OFF
3    ON
4    OFF
5    ON
6    OFF
7    ON
8    OFF
9    OFF
10    ON
Attention:

Please check chip number before making a selection. Some have similar chip numbers.
