AO Smith

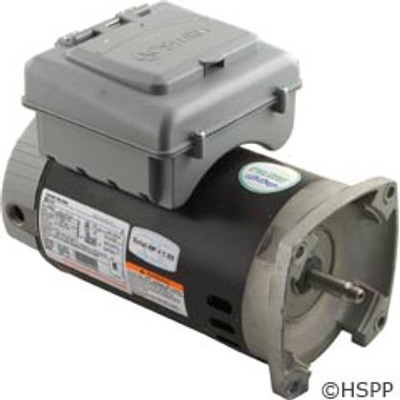

Motor Century 1 Hp 230V 2-Spd 56Yfr Sqfl 2-Green B2982T

Write a Review
SKU:
B2982T
MPN:
B2982T
  • Motor Century 1 Hp 230V 2-Spd 56Yfr Sqfl 2-Green
  • Motor Century 1 Hp 230V 2-Spd 56Yfr Sqfl 2-Green at a different angle again.
  • Motor Century 1 Hp 230V 2-Spd 56Yfr Sqfl 2-Green B2982T
  • Motor Century 1 Hp 230V 2-Spd 56Yfr Sqfl 2-Green B2982T
$593.98

Description

DISCONTINUED.

DISCONTINUED

DISCONTINUED



FeaturesBenefits

All-in-one design with integrated motor and timer as one unit No additional wiring required! other aftermarket timers require external leads and can be wired incorrectly
Rain-proof timer enclosure Other aftermarket timers require a secondary enclosure for outdoor use of the electronics
On-screen motor status updates Unique feature that provides user feedback (if the shaft is locked for instance) which can reduce motor failures; shows the mode (high, low, off) and time remaining
Built-in battery backup protects programming for 7 full years No need to replace battery (unlike other timers) or reset time/settings during a power outage or off-season
Integrated LCD backlight and adjustable contrast Ensures the display can easily be viewed in dark, shady, or direct sunlight conditions
Intuitive step-by-step screen instructions Step-by-step instructions make initial setup and any future programming changes simple
Manual override User can instantly change motor parameters for cleaning or maintenance without adjusting permanent settings



The reasons a 2GreenTM premium-efficiency replacement motor can offer such impressive savings are numerous including:

  • An integrated timer interface allows for easier installation and operation of a two-speed replacement motor. The all-in-one design reduces installation time and expense with no additional wiring required.
  • A run capacitor used on both high and low speeds improves electromagnetic balance increasing the power factor and watts efficiency resulting in lower amps and lower operating cost.
  • The amount of horsepower required to move the water through the pipes drops much more quickly than the speed. While it may take one horsepower to move the water through the pipes on high speed it only takes 1/8 horsepower to move one half as much water through those same pipes on low speed. Even when run on low speed twice as long to pump the same amount of water as on high speed, the lower horsepower results in significant energy savings.


Features:

Integrated Timer Interface Battery Backup - Program Saver High Efficiency High and Low Speed

Timer Mode LCD Display with Backlight Open Dripproof
Adjustable Contrast Ball Bearing Rotation: CCW Pump End
Manual Mode Class B Insulation Single Phase
Over Current Protection 50degC Ambient 303 Stainless Steel Shaft
